OVS-170A-EHL

The OVS-170-EHL is a cutting-edge fanless industrial panel PC, designed to deliver reliable performance in demanding industrial environments. Its 17-inch LED display with 5:4 format offers a Full HD resolution of 1920 x 1080 pixels, ensuring sharp and detailed images.

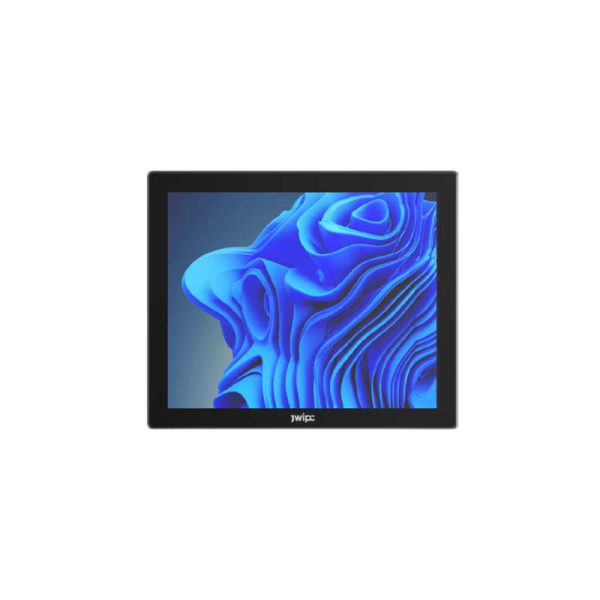

Professional Display

The panel features 250cd/m² brightness and a 1000:1 contrast ratio, with wide viewing angles of 85° both right and left and 80° both up and down. The LED backlight ensures an operational lifespan of 30,000 hours, guaranteeing long-term reliability. The 10-point capacitive touchscreen offers excellent responsiveness with transmittance over 81% and a guaranteed lifetime of 50 million touches.

Computing Power

At the heart of the system is the Intel® Celeron® J6412 processor, accompanied by a SO-DIMM DDR4 3200MHz slot supporting up to 32GB of RAM. For storage, the device is equipped with an M.2 2242/2280 SATA interface and a SATA 3.0 7+15Pin port, offering flexibility in storage options.

Advanced Connectivity

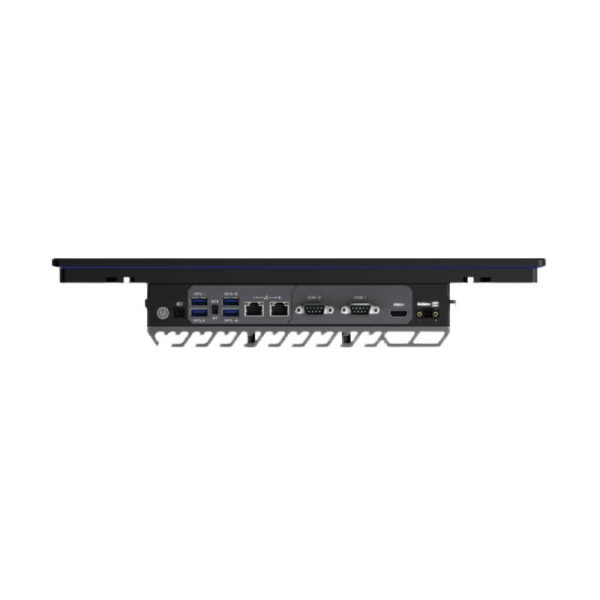

Connectivity is ensured by 4 USB 3.0 ports, 2 configurable serial ports (RS232/422/485), an HDMI 1.4b port, and two Ethernet ports managed by Intel I210AT and Intel I226V controllers. Expandability is provided by an M.2 Key E 2230 slot for WiFi 6 modules and an M.2 Key B 3052/3042 slot for 4G/5G modules.

Industrial Robustness

Designed to operate in harsh environmental conditions, the OVS-170-EHL functions in a temperature range from -20°C to 60°C and withstands vibrations from 5 to 500Hz 1Grms and shocks of 15g for 11ms. The front panel is IP65 certified for protection against dust and water. The flexible 12-36V DC power supply includes RVP/SCP/OVP/OCP protections.

Installation Versatility

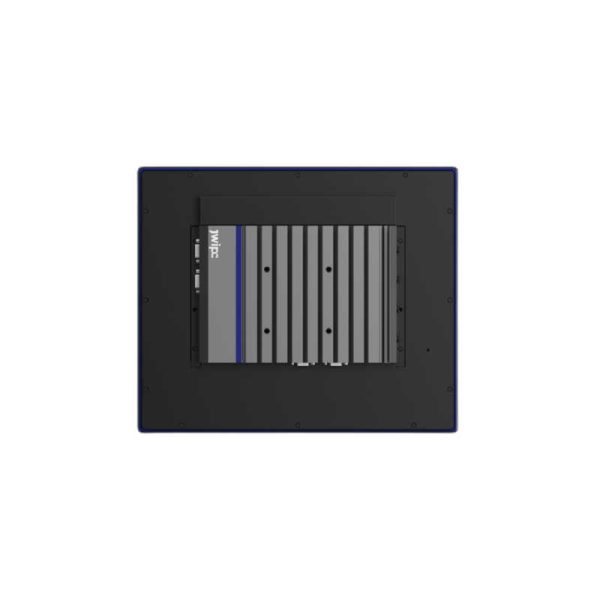

With dimensions of 391.4 x 326.4 x 71 mm, the device can be wall-mounted or attached to a VESA 75×75 mount, adapting to various installation needs. Compatibility with Windows® 10 and Linux Ubuntu ensures maximum flexibility in software implementation.
