OVS-185A-EHL

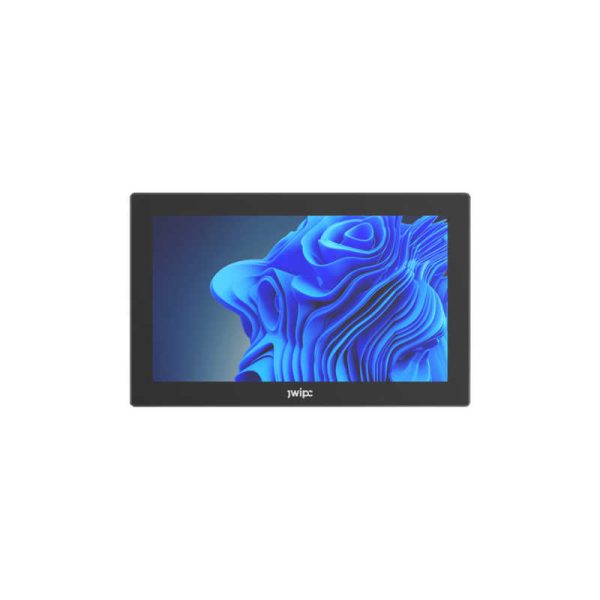

The OVS-185-EHL is a cutting-edge fanless embedded panel PC, designed to ensure reliable performance in demanding industrial environments. Equipped with an 18.5-inch LED display with Full HD 1920×1080 resolution, it offers excellent visual quality with a 1000:1 contrast ratio and 250cd/m² brightness.

Superior Performance

The heart of the system is the Intel® Celeron® J6412 processor, paired with a SO-DIMM DDR4 3200MHz memory module expandable up to 32GB. This configuration ensures optimal performance for complex industrial and commercial applications.

Advanced Connectivity

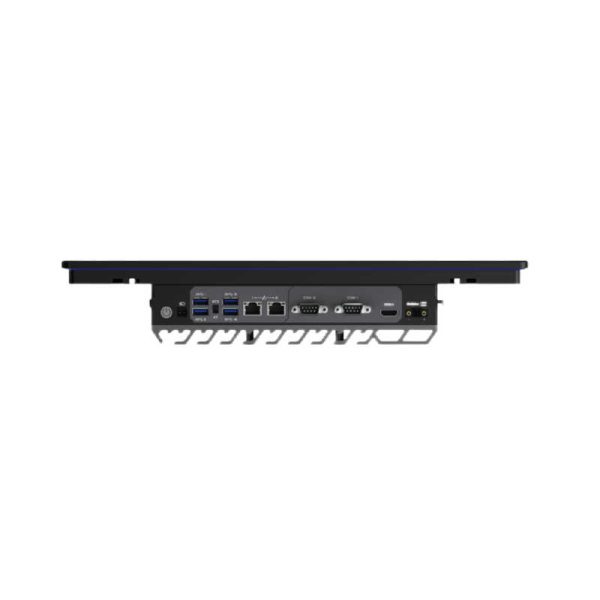

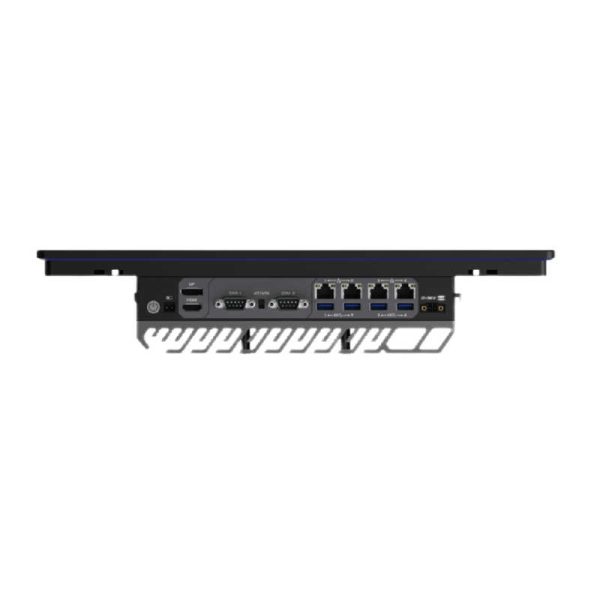

The OVS-185-EHL offers comprehensive connectivity with 4 USB 3.0 ports, 2 configurable serial ports (RS232/422/485), an HDMI 1.4b port, and two Intel network interfaces (I210AT and I226V). The system also supports wireless expansion through dedicated M.2 slots for WiFi 6 and 4G/5G modules.

Robust Design

Designed to operate in harsh environmental conditions, the panel PC maintains its performance in a temperature range from -20°C to 60°C. The IP65-certified front panel ensures protection against dust and water, while the structure is tested to withstand vibrations (5-500Hz 1Grms) and shocks (15g 11ms).

Responsive Touchscreen

The display features a 10-point capacitive touchscreen with transmittance greater than 81% and a guaranteed durability of 50 million touches, ideal for industrial user interfaces.

Flexible Storage

Storage options include an M.2 2242/2280 SATA interface and a SATA 3.0 port, offering flexibility in storage configuration based on specific requirements.

Versatile Mounting

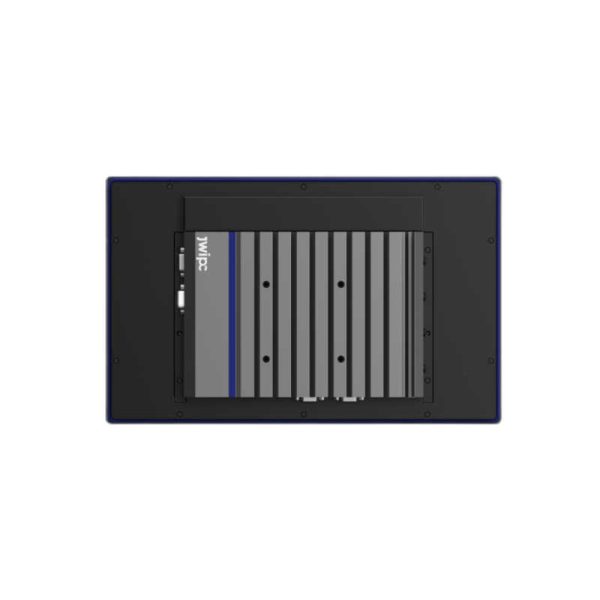

With dimensions of 470 x 290 x 79 mm, the OVS-185-EHL can be wall-mounted or installed using VESA 75×75 support, adapting to various industrial mounting configurations.
