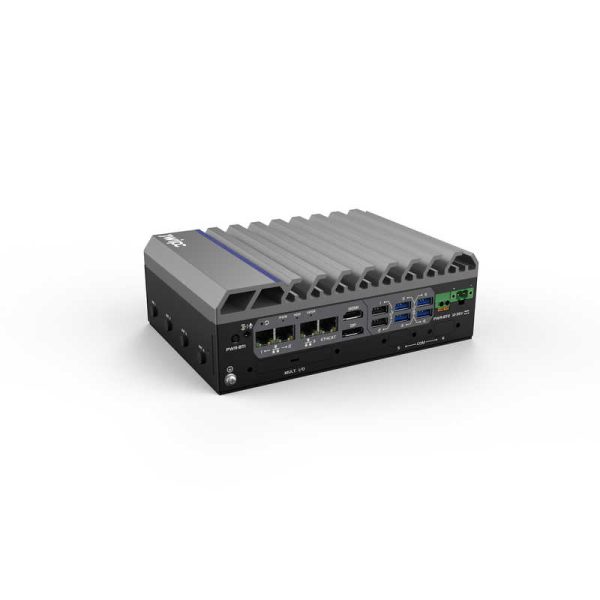

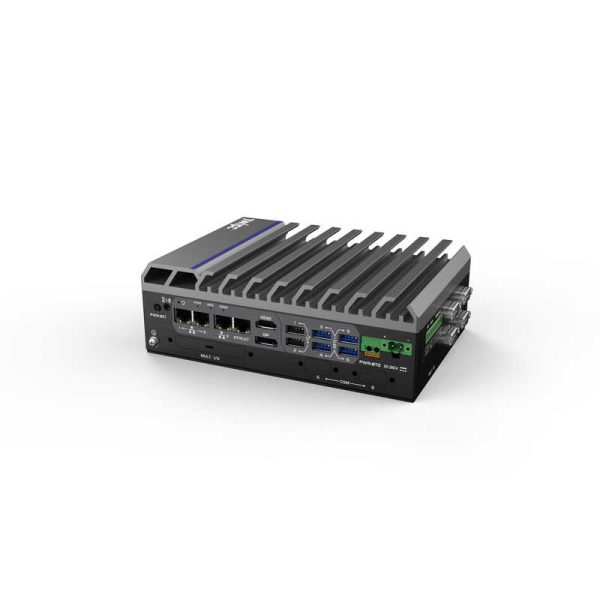

JEC-3020

The JEC-3020 is a cutting-edge fanless embedded PC designed for industrial applications requiring high performance and reliability. Equipped with the 4-core Intel® Elkhart Lake Celeron® J6412 processor with 10W TDP, this system offers a perfect balance between power and energy efficiency.

Exceptional Performance

The system supports up to 32GB of DDR4 3200MHz SO-DIMM memory, ensuring excellent multitasking performance. The integrated Intel® UHD Gen.10 graphics enables management of multiple displays through HDMI (4096×2160 @24Hz) and DisplayPort (4096×2160 @60Hz) ports.

Advanced Connectivity

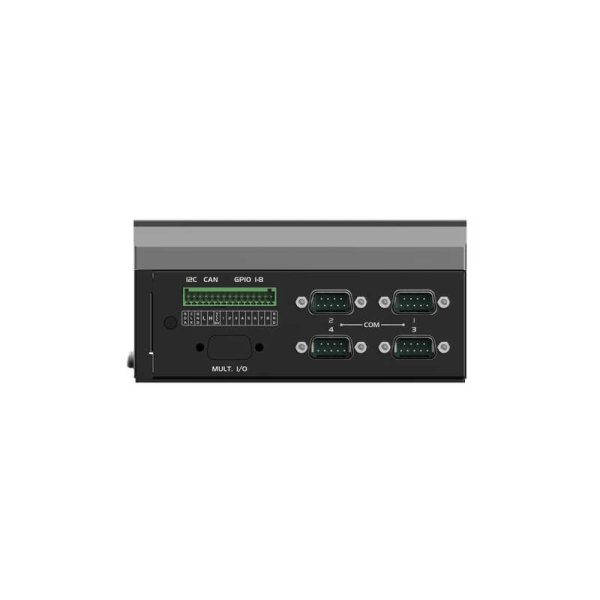

Connectivity is a strong point with 4 RJ45 Ethernet ports (3x i226V, 1x i210AT) with 4kV surge protection, 4 USB 3.0 and 2 USB 2.0 ports, 2 RS232/422/485 serial ports, and a CANBus 2.0 interface with I²C. The system also supports expansions through M.2 slots for Wi-Fi/BT, 4G/5G modules and SSD storage.

Robust Design

Built to withstand industrial environments, the JEC-3020 operates in a temperature range from -10°C to 60°C with 0.7m/s airflow. The compact chassis (200.4 × 140.4 × 52.7 mm) is designed to resist vibrations (2Grms) and shocks (15G) according to IEC standards. Industrial port protection against static discharges and surges ensures reliable operation.

Flexible Storage

Storage options include a 2.5″ bay for SATA 3.0 HDD/SSD and an M.2 Key-M slot for 2280 format SSD. The system is equipped with AMI UEFI BIOS and supports TPM 2.0 through the Infineon SLB9670 chip.

Advanced Management

The programmable watchdog timer (1-255 sec/min) and LED indicators for power, HDD, and user status facilitate system monitoring. The flexible 12-36V DC power supply with 2-pin Phoenix connector makes the JEC-3020 suitable for various installation configurations.
